Spin Doctor Tile Leveling System Manufacturer & Wholesale Supplier
Professional twist-type tile leveling system. No tools, no hammer — just rotate to level. Reusable caps. Factory-direct wholesale.
A twist-to-level system with no tools required — reusable caps twist down over disposable bases to pull tiles level in one pass. Two cap sizes (49mm and 57mm) cover 1.0–3.0mm joints on 3–25mm tiles. 50 sets per bag with OEM branding for wholesale orders.
Guide price: FOB Ningbo at standard MOQ. Raw material costs and selected specifications can change the current quotation.
CE Marked
ISO 9001
TÜV Rheinland
SGS Certified
RoHS Spin Doctor Tile Leveling System Models — Choose Your Size
Compare the available catalog models
Select a model to open its dimensions, working range, weight and application notes below.
Showing BM-D01. Select another model to compare its specification.
BM-D01
Dimensions: Cap Ø57×36mm, Base 42×30×72mm
Tile Thickness: 3–25mm
Spacer Options:
- 1.0mm → 2.71g/pcs
- 1.5mm → 2.9g/pcs
- 2.0mm → 3.13g/pcs
- 3.0mm → 3.32g/pcs
Standard version, large 57mm cap
Verified model and carton references
Published rows have a complete pack count, carton net weight, gross weight and carton size. Use them for initial purchasing comparison, then confirm the approved packing list for the actual order.
| Model / option | Inner pack | Master carton | Pack weight | N.W. / G.W. | Carton size | RFQ |
|---|---|---|---|---|---|---|
| BM-D01-BASESpin Leveling Base · BM-D01 component · standard | 100pcs | 30packs | 300 g | 9 kg / 10 kg | 56×38×35 cm | Add model to RFQ → |
| BM-D01-CAPSpin Leveling Cap · 1.5 mm · BM-D01 component · standard | 50pcs | 30packs | 300 g | 9 kg / 10 kg | 52×42×39 cm | Add model to RFQ → |
Packaging dataset2026-10-11.17 · · 2 model options remain hidden because at least one carton field or reconciliation is unresolved.
Spin Doctor Tile Leveling System Technical Specifications
| Model | Dimensions | Tile Thickness | Spacer Options | Weight Range |
|---|---|---|---|---|
| BM-D01 | Cap Ø57×36mm, Base 42×30×72mm | 3–25mm | 1.0mm, 1.5mm, 2.0mm, 3.0mm | 2.71g – 3.32g |
| BM-D02 | Cap Ø49×25.5mm, Base 47.7×31.6×25mm | 3–18mm | 1.0mm, 1.5mm, 2.0mm, 3.0mm | 1.64g – 2g |
Spin Doctor Tile Leveling System for Wholesale & Bulk Orders — Factory-Direct Pricing
As a twist-cap tile leveling system manufacturer in Wenzhou, China, we supply wholesale buyers with factory-direct pricing. MOQ starts at 500 bags (50 sets/bag). The hand-tightened cap applies controlled pressure without a separate wedge or tightening pliers.
Our Spin Doctor system is compatible with tiles from 3mm to 25mm thickness. Ideal for wall installations where clip-and-wedge systems are slower and less precise. Each bag contains 50 complete sets (caps + base plates). Volume discounts available for 1,000+ bag orders.

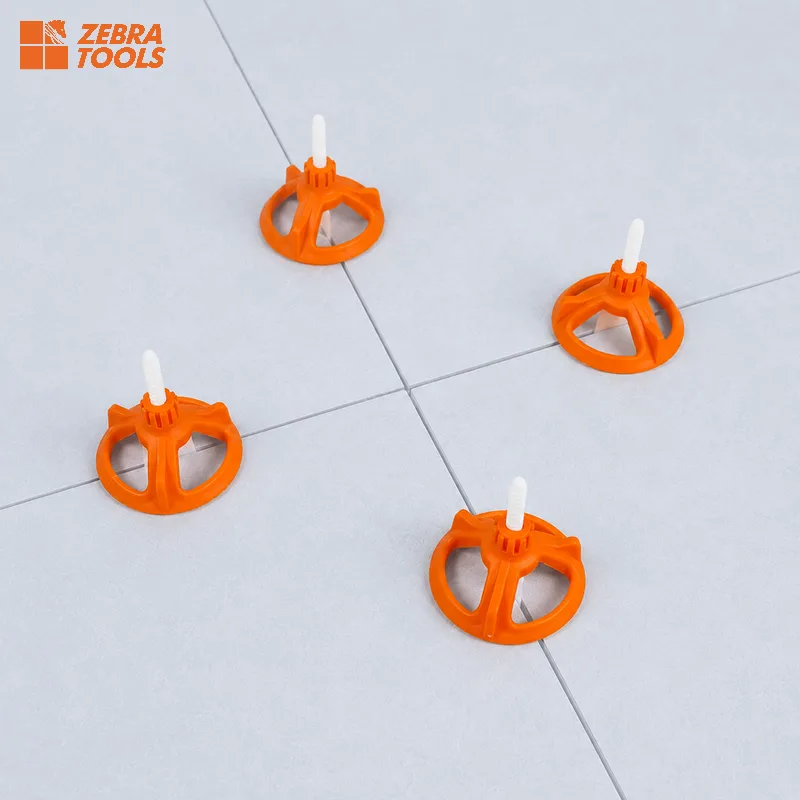

Twist-Cap Wall Tile System
Hand-tightened twist mechanism with a reusable cap and consumable base. MOQ 500 bags (50 sets/bag).
Large-Format Installation Option
The wide cap distributes pressure across adjacent tile faces. Test the system with the selected tile and mortar before a production order. MOQ 500 bags.
ZEBRA TOOLS is a professional tile leveling system manufacturer supplying clips, wedges, pliers and complete leveling systems.
Guide prices are FOB Ningbo at MOQ and subject to raw material cost fluctuations. Contact us for current pricing.
OEM Spin Doctor Tile Leveling System — Private Label, Custom Colors & Packaging
We offer full OEM/ODM customization for wholesale buyers. Match any Pantone color for caps and base plates, add your logo to the packaging, or develop custom joint widths. Custom color MOQ starts at 5,000 bags per color, with production lead time of 15–25 days.
Pantone colors MOQ 5,000 bags.Consistent shade batch-to-batch.
Your brand on printed bags, retail boxes, or blister cards. Vector artwork required. MOQ 3,000 bags.
Custom cap geometries and base plate profiles. 15–25 days from 3D design to first sample.
Spin Doctor Tile Leveling System Applications & Buyers — Contractors, Distributors & Importers
Suitable for: Distributors / Importers / Wholesalers / Private Label Brands
Recommended Accessories
How to Use Spin Doctor Tile Leveling System — Step-by-Step Guide
Step 1: Place Base Plates Under Tiles
Position Spin Doctor base plates under tile edges before setting tiles into the thin-set mortar. The threaded post should extend up through the grout joint. Space plates every 25–35cm along each edge for even leveling pressure.
Step 2: Press Tiles Into Thin-Set
Set the tile firmly onto the mortar bed with the threaded post protruding through the joint. Ensure the tile is seated evenly. The base plate remains under the tile permanently — only the post will be removed.
Step 3: Screw On the Twist Cap

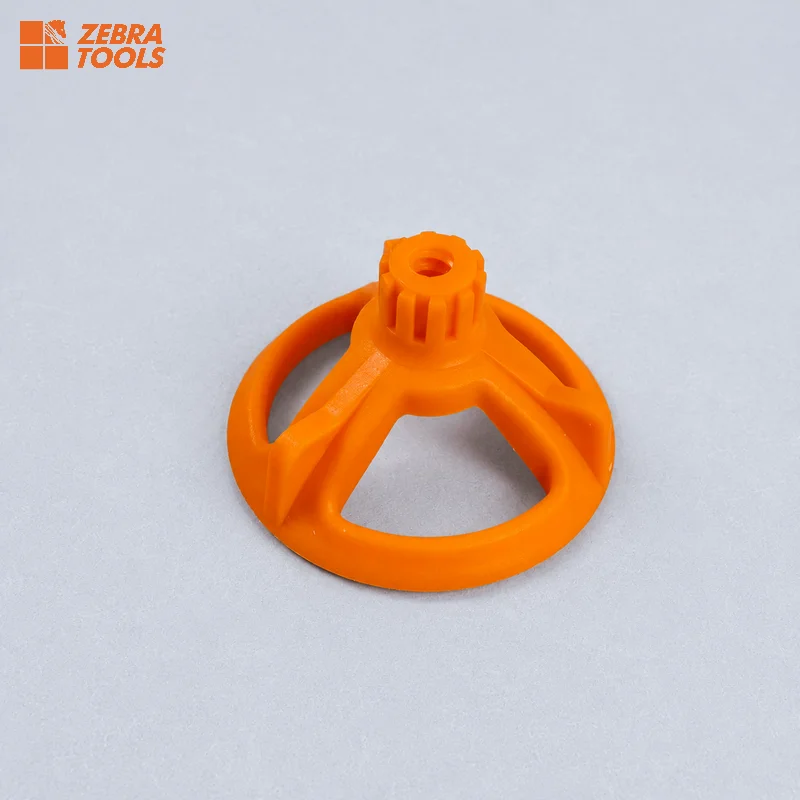

Thread the orange Spin Doctor cap onto the post by hand. Rotate clockwise until the cap contacts the tile surface. Continue rotating to apply downward pressure — the cap pushes uneven tiles into alignment without any hammering or special tools.
Step 4: Fine-Tune and Check Level
Check tile alignment with a spirit level or straightedge. Tighten individual caps gradually and stop once adjacent tile faces are flush; excessive pressure can disturb the mortar bed or damage tile.
Step 5: Remove Caps After Curing
Follow the mortar manufacturer’s stated removal time. Twist off and clean the reusable caps, then remove the exposed post in the direction specified for the system before grouting.
Frequently Asked Questions
What is the MOQ for wholesale Spin Doctor leveling systems?
MOQ starts at 500 bags (50 sets/bag) for standard Spin Doctor systems. For custom colors, MOQ is 5,000 bags per color; for private label packaging, 3,000 bags. Volume discounts available for 1,000+ bags.
How does the twist-cap system differ from clip-and-wedge?
The system uses a cap that turns by hand over a threaded base, while a clip-and-wedge system tensions a wedge through a clip. The cap is recovered after curing and the base is the consumable component.
What tile thickness does the Spin Doctor support?
Our Spin Doctor system supports tile thicknesses from 3mm to 25mm, covering standard ceramic, porcelain, and natural stone tiles. The threaded post allows continuous adjustment within this range.
Are the caps reusable?
Yes. Remove the caps after the mortar reaches the timing stated by its manufacturer, clean off residue and inspect the threads before reuse. The base is the consumable component.
Can I get the Spin Doctor in custom colors?
Yes. We offer OEM color customization for caps and base plates. Standard colors are orange/yellow for jobsite visibility. Custom color MOQ starts at 5,000 bags per color.
Do I need special tools for the Spin Doctor system?
No special tools required. The Spin Doctor is a hand-twist system — no pliers, no hammer, no wedges. Simply rotate the cap by hand to level. This reduces installer fatigue and speeds up installation.
Do you offer free Spin Doctor samples?
Yes. Product samples are free for qualified B2B buyers. The buyer pays DHL courier freight, and that courier charge is credited against the first bulk order.
