Tile Leveling Wedges Manufacturer & Wholesale Supplier
Reusable PP/PE tile leveling wedges in 11 catalog models: standard, clip-specific, mini and U-type profiles. Factory-direct wholesale from China.
ZEBRA tile leveling wedges span 11 catalog models. A01–A05 are standard profiles; A06 pairs with BM-B07/BM-B09 clips; A07 pairs with BM-B08; and A08–A11 cover compact 1–5mm through 1–10mm size ranges. Standard packing is 100 pieces per bag with a 500-bag MOQ.
Guide price: FOB Ningbo at standard MOQ. Raw material costs and selected specifications can change the current quotation.
CE Marked
ISO 9001
TÜV Rheinland
SGS Certified
RoHS Tile Leveling Wedges Models — Choose Your Size
Find the right wedge profile for the application
Filter by wedge family or catalog-confirmed ZEBRA clip pairing.
11 catalog models available. Choose a family or confirmed clip pairing.
Compatibility is geometry-specific. Confirm unlisted pairings with physical samples before ordering.
BM-A01
Dimensions: 92×23×16.5mm
Tile Thickness: 3–14mm
Weight Range: 6.2g
Standard wedge
Verified model and carton references
Published rows have a complete pack count, carton net weight, gross weight and carton size. Use them for initial purchasing comparison, then confirm the approved packing list for the actual order.
| Model / option | Inner pack | Master carton | Pack weight | N.W. / G.W. | Carton size | RFQ |
|---|---|---|---|---|---|---|
| BM-A01Large Double-Rib Wedge · standard | 100 pcs | 20 packs | 630 g | 12.6 kg / 13.5 kg | 52×42×37 cm | Add model to RFQ → |
| BM-A02Cross-Rib Wedge · standard | 100 pcs | 30 packs | 520 g | 15.6 kg / 16.4 kg | 55×42×41 cm | Add model to RFQ → |
| BM-A03570 g Wedge · standard | 100 pcs | 20 packs | 570 g | 11.4 kg / 12.3 kg | 52×42×37 cm | Add model to RFQ → |
| BM-A04Single-Rib Wedge · standard | 100 pcs | 20 packs | 470 g | 9.4 kg / 10.2 kg | 52×42×37 cm | Add model to RFQ → |
| BM-A05Small Double-Rib Wedge · standard | 100 pcs | 30 packs | 390 g | 12 kg / 13 kg | 55×42×40 cm | Add model to RFQ → |
| BM-A07Single Wedge · printed bag and carton | 50 pcs | 50 packs | 238.5 g | 12 kg / 13 kg | 50×38×25 cm | Add model to RFQ → |
| BM-A07Single Wedge · plain film and carton | 50 pcs | 50 packs | 238.5 g | 12 kg / 13 kg | 47×36×22 cm | Add model to RFQ → |
Packaging dataset2026-10-04.14 · 2026-10-04 · 1 model option remain hidden because at least one carton field or reconciliation is unresolved.
Tile Leveling Wedges Technical Specifications
| Model | Dimensions | Catalog Size Range | Confirmed Pairing | Unit Weight |
|---|---|---|---|---|
| BM-A01 | 92×23×16.5mm | 3–14mm | Sample test | 6.2g |
| BM-A02 | 87×21×16mm | 3–14mm | Sample test | 5.1g |
| BM-A03 | 92×23×16.5mm | 3–14mm | Sample test | 5.6g |
| BM-A04 | 92×23×16.5mm | 3–14mm | Sample test | 4.7g |
| BM-A05 | 83×20×16.9mm | 3–14mm | Sample test | 3.9g |
| BM-A06 | 70×15×14mm | - | BM-B07 / BM-B09 | 4.7g |
| BM-A07 | 68×14×16.5mm | - | BM-B08 | 3.0g |
| BM-A08 | 28.5×6.4×5mm | 1–5mm | Sample test | 0.4g |
| BM-A09 | 29×8×6mm | 1–6mm | Sample test | 0.5g |
| BM-A10 | 35×8.2×8mm | 1–8mm | Sample test | 1.03g |
| BM-A11 | 57×9.7×9.7mm | 1–10mm | Sample test | 1.5g |
Tile Leveling Wedges for Wholesale & Bulk Orders — Factory-Direct Pricing
As a tile leveling wedges manufacturer in Wenzhou, China, we supply 11 PP/PE catalog models at factory-direct prices. MOQ starts at 500 bags for standard specifications, packed 100 pieces per bag.
Wedge compatibility depends on the clip opening, strap geometry, usable travel and removal method. The catalog confirms BM-A06 for BM-B07/BM-B09 clips and BM-A07 for BM-B08. Sample-test every other pairing before a bulk order.

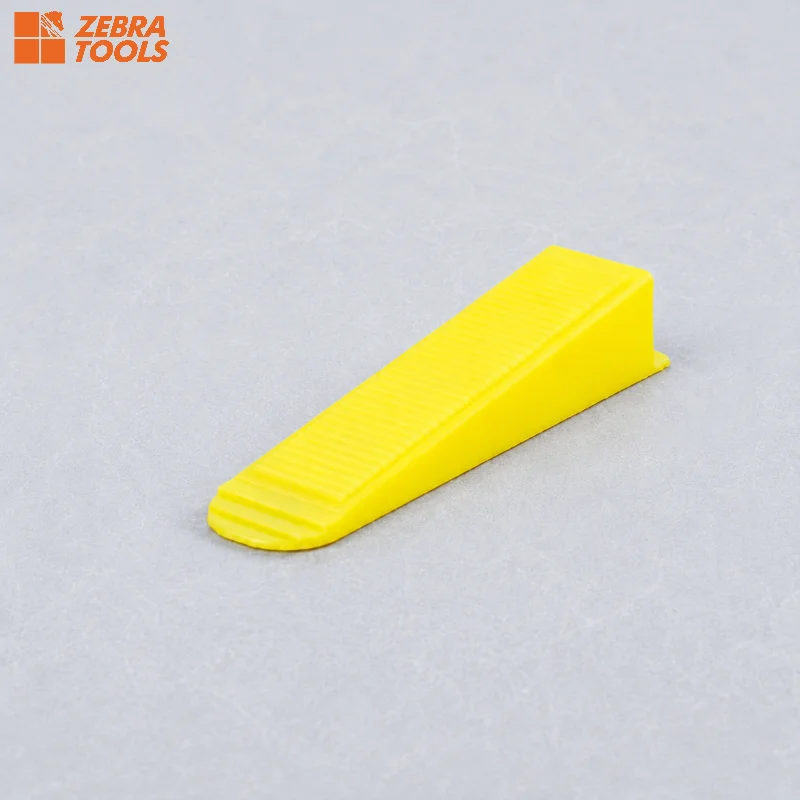

Standard Wedges (BM-A01–A05)
Five profiles from 83×20×16.9mm to 92×23×16.5mm, with catalog unit weights from 3.9g to 6.2g. MOQ 500 bags.
Clip-Specific Wedges (BM-A06/A07)
BM-A06 is catalog-matched to BM-B07/BM-B09 clips; BM-A07 is matched to BM-B08. Confirm physical fit before changing either component.
Mini Wedges (BM-A08/A09/A10)
Compact bodies cover catalog size ranges of 1–5mm, 1–6mm and 1–8mm respectively. Standard packing is 100 pieces per bag.
U-Type Wedge (BM-A11)
The 57×9.7×9.7mm U-type profile covers a 1–10mm catalog size range and weighs 1.5g per piece.
ZEBRA TOOLS is a professional tile leveling system manufacturer supplying clips, wedges, pliers and complete leveling systems.
Guide prices are FOB Ningbo at MOQ and subject to raw material cost fluctuations. Contact us for current pricing.
How to Choose Among 11 Tile Leveling Wedge Models
- A01–A05: standard wedge profiles for general systems
- A06: confirmed for ZEBRA BM-B07 and BM-B09 clips
- A07: confirmed for ZEBRA BM-B08 clips
- A08–A11: compact mini and U-type profiles for restricted spaces
- The wedge fits through the selected clip opening
- The travel range reaches controlled tension
- The wedge face does not mark the tile surface
- The wedge releases cleanly after the specified cure time
OEM Tile Leveling Wedges — Private Label, Custom Colors & Packaging
We offer full OEM/ODM wedge customization for wholesale buyers. Choose any Pantone color for wedge bodies, add your logo to the bag, or request custom dimensions. Custom color MOQ starts at 5,000 bags per color, with production lead time of 10–15 days.
Pantone colors MOQ 5,000 bags.Consistent shade batch-to-batch.
Your brand on printed bags, retail boxes, or blister cards. AI/PDF vector artwork required.
Quick quote based on your custom mold specifications.
Tile Leveling Wedges Applications & Buyers — Contractors, Distributors & Importers
Suitable for: Distributors / Importers / Wholesalers / Private Label Brands
Recommended Accessories
How to Use Tile Leveling Wedges — Step-by-Step Guide

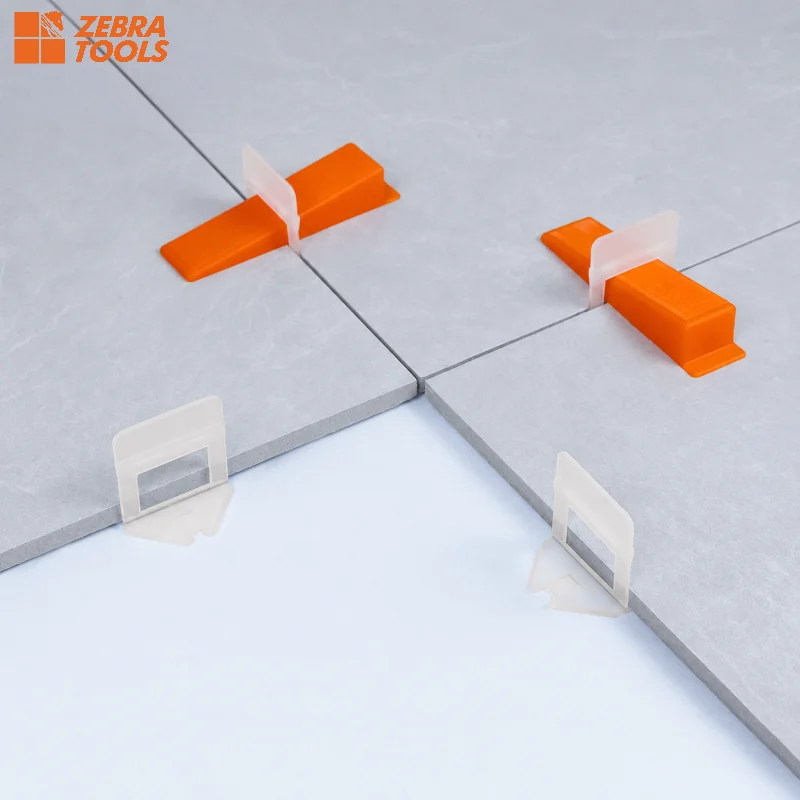

Step 1: Position Clips Under Tiles
Place tile leveling clips under each tile edge as you lay them. Space clips every 20–30cm. Ensure the clip strap extends through the grout joint. For corners, place clips 5cm from the edge on both sides.

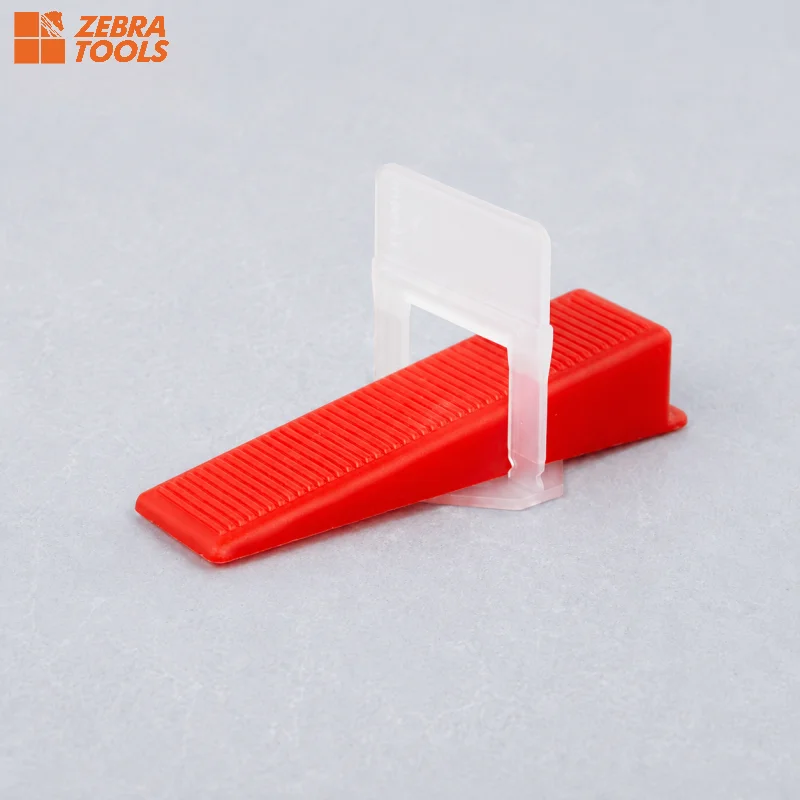

Step 2: Insert the Wedge Through the Clip
Slide the selected reusable wedge through the clip opening from the side. Push only until the wedge makes controlled contact; excessive force can damage the clip or move the tile.
Step 3: Tighten With Leveling Pliers
Use ergonomic tile leveling pliers to squeeze the wedge through the clip. Apply steady, controlled pressure — the wedge pulls the clip strap upward, bringing both tiles to the same level. Stop when tiles are flush.
Step 4: Remove Wedges After Curing
Follow the mortar manufacturer’s cure guidance and the selected clip system’s removal direction. Recover intact wedges, clean off residue, and inspect the teeth and taper before reuse.
Frequently Asked Questions
What is the MOQ for wholesale tile leveling wedges?
MOQ starts at 500 bags for standard wedge specifications, packed 100 pieces per bag. The guide FOB range is $0.80–1.00 per bag at MOQ, subject to the selected model, packaging and raw-material costs.
Which wedges have confirmed ZEBRA clip pairings?
The catalog confirms BM-A06 for BM-B07 and BM-B09 clip bases, and BM-A07 for BM-B08. For A01–A05 and A08–A11, confirm the clip opening, wedge travel and removal method with physical samples.
How many wedges do I need per square meter?
The number in active use is normally the same as the installed clip count for that work section. A regular 60×60cm grid using four clips per tile needs about 11 wedges per m² at one time; wedges can be recovered after the specified cure and removal step.
How many times can the wedges be reused?
Reuse life depends on insertion force, removal method, material, temperature and site handling. Inspect the teeth, taper and body for deformation before each reuse; replace any wedge that no longer holds controlled tension.
Can I order wedges in custom colors?
Yes. We offer Pantone color matching for wholesale wedge orders. Custom color MOQ starts at 5,000 bags per color. Standard colors available from stock with no MOQ premium.
What is the difference between a disposable clip and a reusable wedge?
The clip base normally stays under the tile and its strap breaks away after curing. The wedge is removed intact and can be used again if its teeth, taper and body remain undamaged.
Do you offer free wedge samples?
Evaluation samples are available for qualified wholesale buyers. The dispatch date depends on the selected model, sample preparation and delivery address and is confirmed in the sample arrangement. The buyer normally covers courier freight; any later credit must be stated in the quotation.
